High-Throughput Fluorescence Cell Counter
Key Features
- 24 samples/batch, 30 sec/sample, 30 µL/sample,
- High accuracy (>95%) and high reproducibility (CV<5%)
- Expanded applications with dual fluorescence channels
- Cell density and viability using AO/PI
- GFP/RFP transfection efficiency
- Compatible with automation integration
- 21 CFR Part 11 compliance-ready

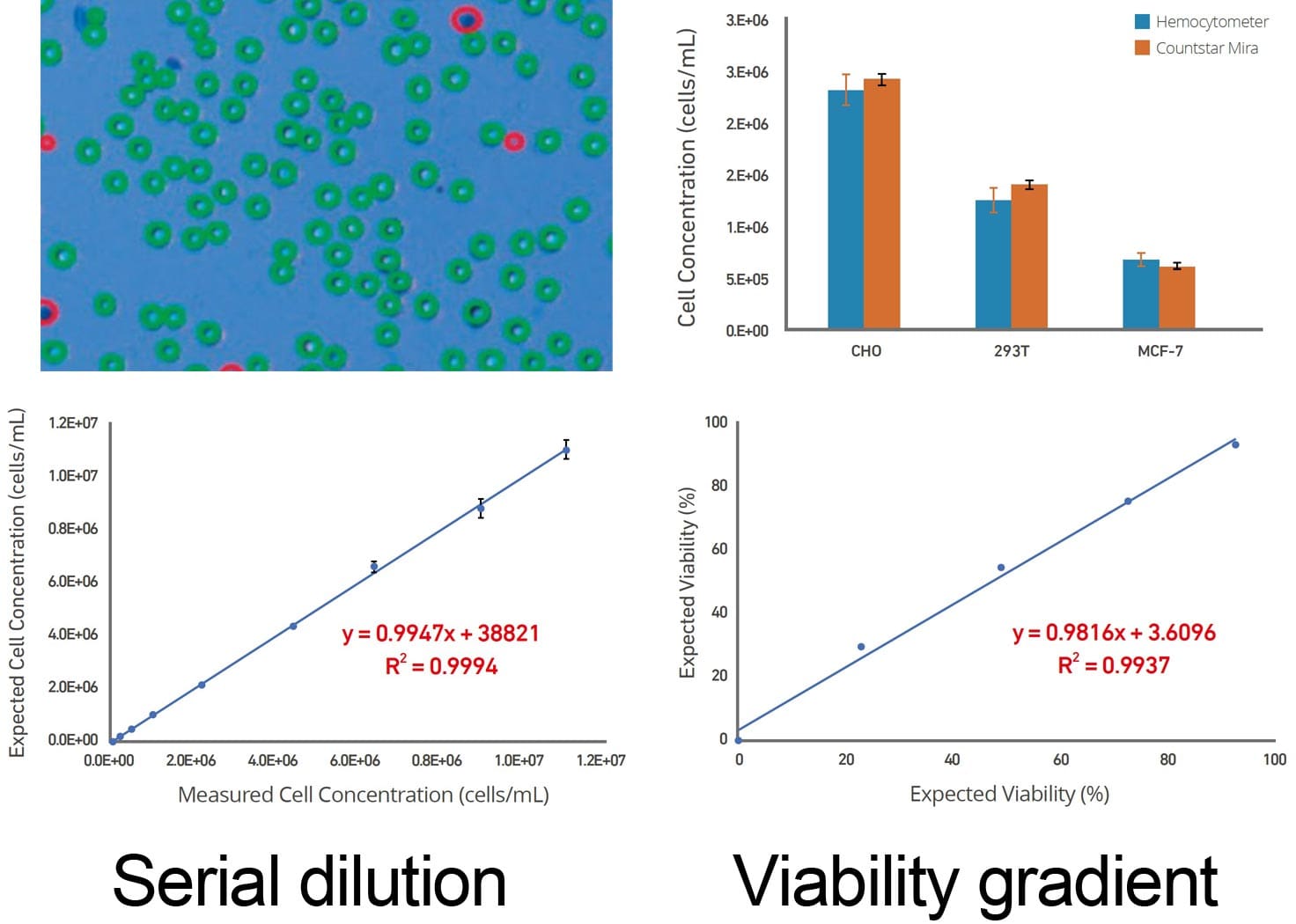

Cell density and viability analysis using Trypan Blue
- Accurate cell identification and characterization (green: live cells; red: dead cells).
- Excellent linearity and accuracy across 2 order concentration range.
- High reproducibility (CV < 5%)

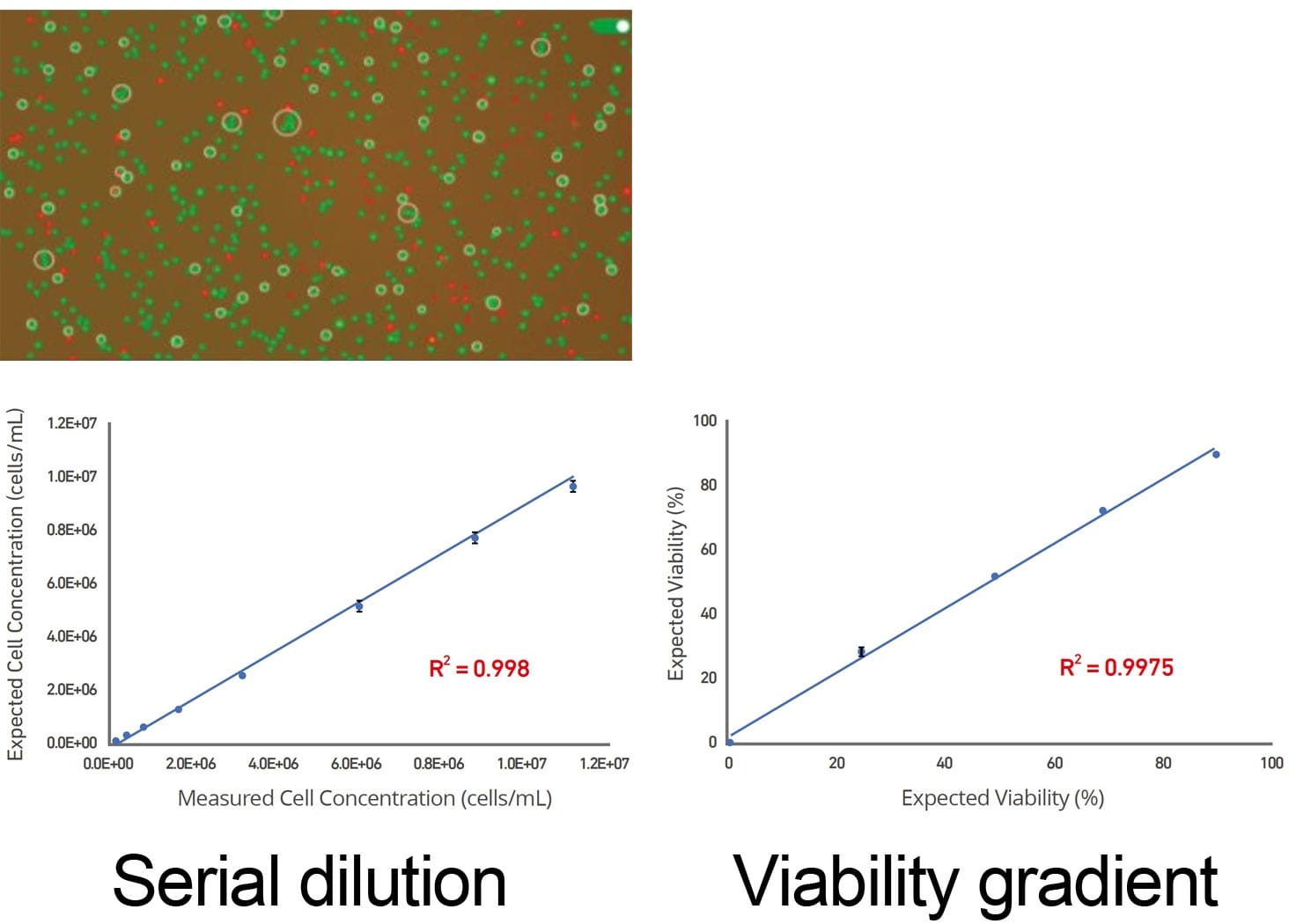

Cell density and viability analysis using AO/PI Fluorescent Dye
- Accurate cell identification and characterization (green: live cells; red: dead cells; white: aggregated cells).
- Excellent linearity and accuracy across 2 order concentration range.
- High reproducibility (CV < 5%)

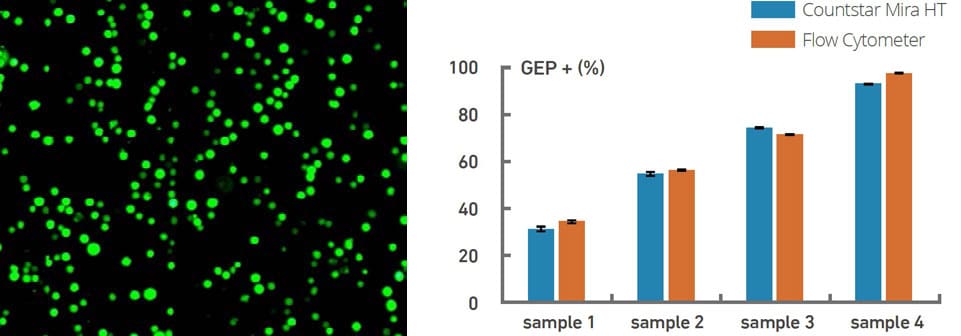

Transfection Efficiency
- Accurate and reproducible data, comparable to a flow cytometer.
- <30 seconds per sample without the need of sample preparation.

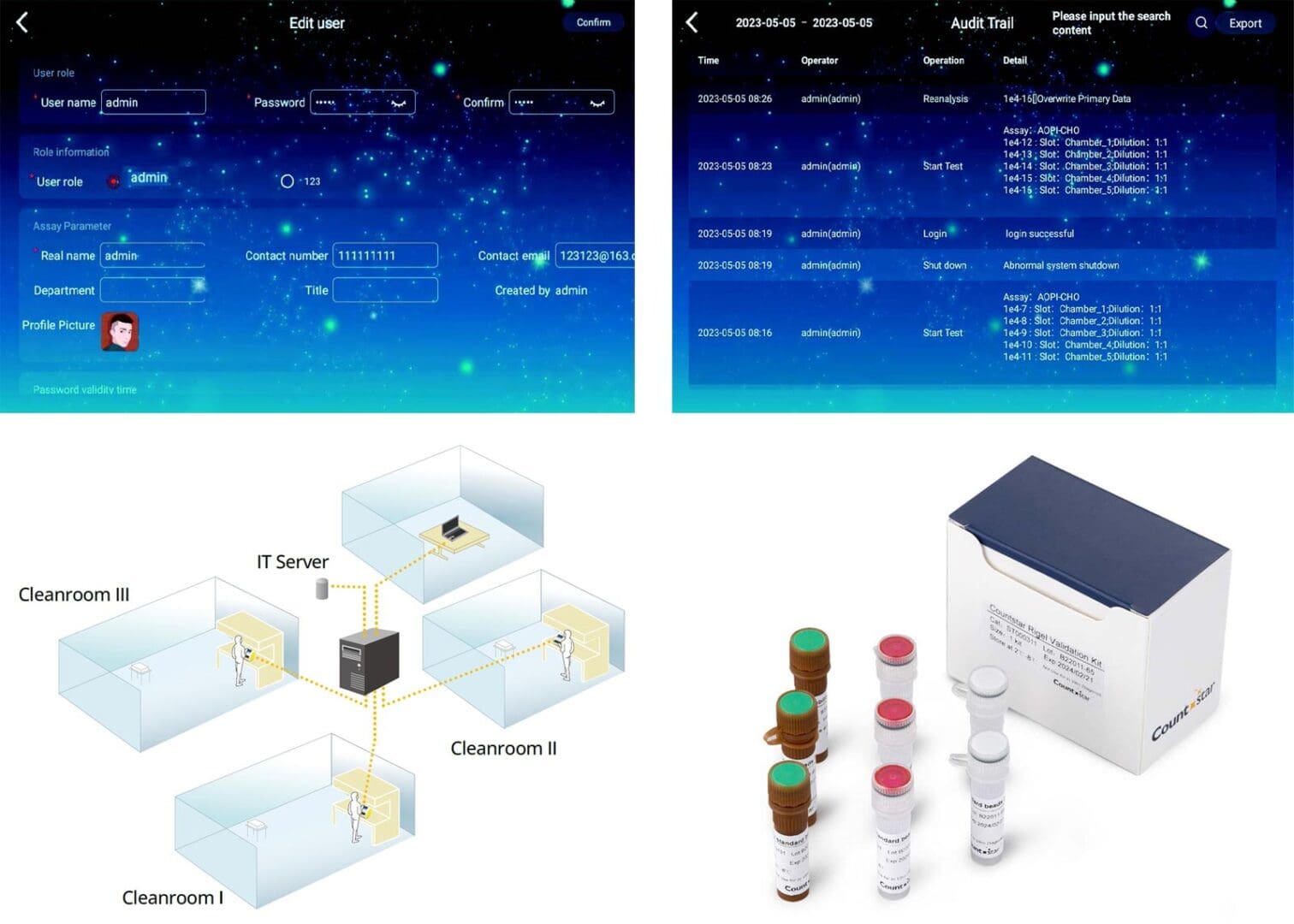

21 CFR Part 11 compliance-ready
- Password protected user login with multiple levels of user privileges.
- Electronic signature and audit logs.
- Automatic data backup
- Comprehensive IQ/OQ/PQ validation services & system suitability test (SST) kit
| Camera and resolution | 8.3MP cooled CMOS color camera |
| Optical zoom | 5x |
| Fluorescence channels | Ex.: 465-485nm Em.: 535/40nm; 600nm LP |
| Cell diameter range | 2-180µm (8-60µm optimal) |
| Concentration range | 1x104 – 3x107 cells/mL |
| Optimal concentration range (CV < 5%) | 5x105 – 1x107 cells/mL |
| Sample volume | 30 µL |
| Throughput | 24 samples/batch |
| Data export format | pdf, csv, jpg |
| Internal storage | 1TB |
| HD touchscreen | 11 inch, 1280x800 resolution |
| Weight | 19.4 lbs (8.6kg) |
| Dimension | 12.1x13.2x14 inches (31×34× 35 cms) |
| Power requirement | 110-230V/AC, 50Hz/60Hz |
| Product Brochure: | Countstar Mira HT Brochure |
| User Manual: | Countstar Mira HT User Manual |
| Video: | High-Throughput Cell Counting Using Countstar Mira HT |
